As cities grow taller and streets grow tighter, the challenge of efficient parking escalates. That’s where innovation steps in. At SolidParking, we’ve engineered a solution that meets the needs of modern urban mobility — introducing the PPS Series, our lift-sliding puzzle parking system designed to save space, time, and cost, without sacrificing user experience or safety.

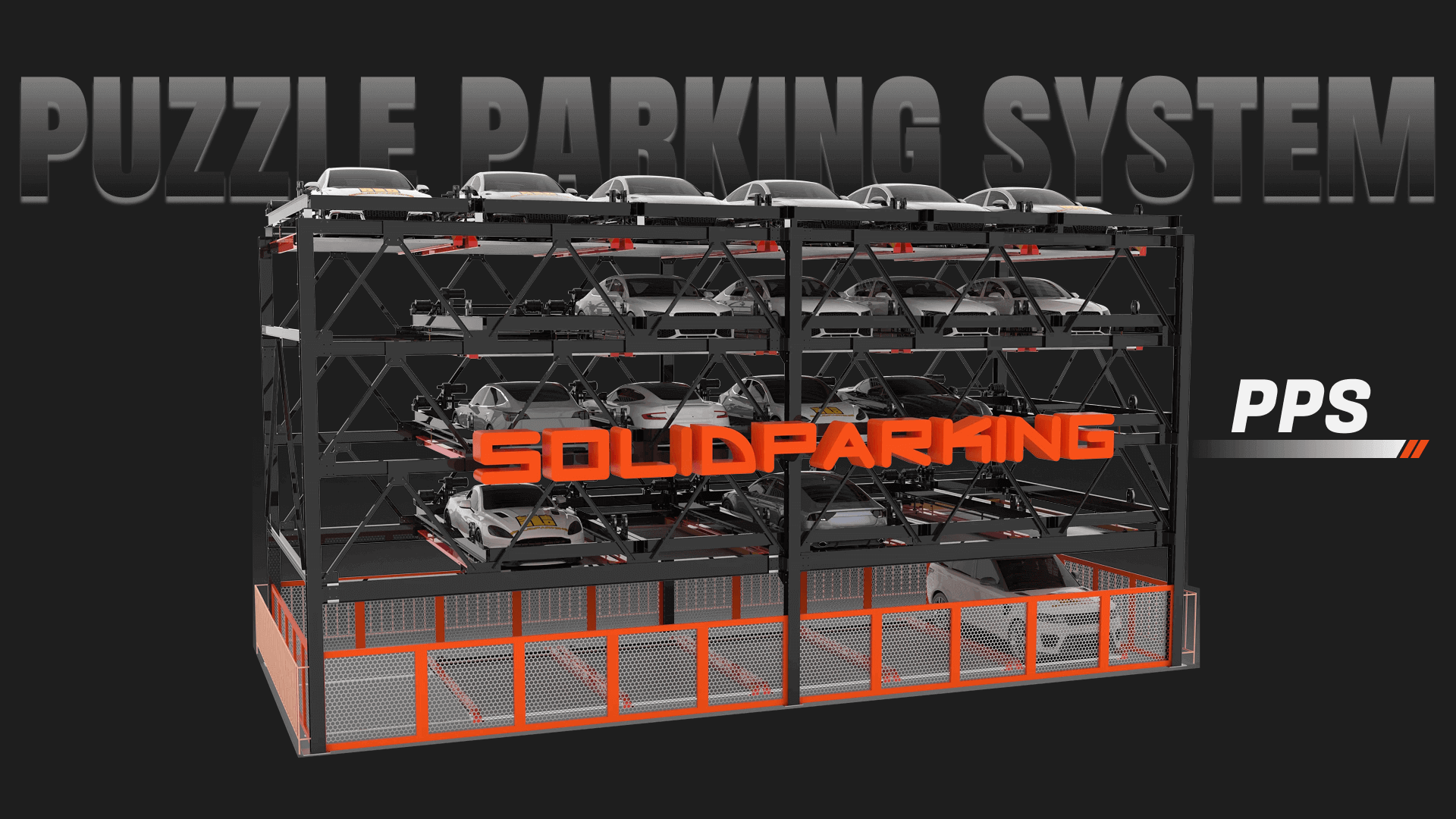

The PPS Series is a semi-automated car parking system — also known as a lift and slide system or puzzle parking. It utilizes a coordinated grid of vertical lifts and horizontal sliding platforms to maneuver cars into parking bays stacked in a compact frame.
Rather than expanding outward like traditional lots, PPS structures grow vertically and laterally, optimizing every cubic meter. It’s like a Rubik’s Cube for cars — a symphony of mechanical precision that makes the most of your real estate.
1.Entry: The driver parks the vehicle on a ground-level platform.
2.Lift & Slide: The platform lifts the car to the appropriate level and then slides it horizontally into an available bay.
3.Stacked Grid: Multiple vehicles are moved in a synchronized puzzle format, creating space for the next arrival.
4.Exit: When retrieving, the system reverses the process—bringing the vehicle down to ground level in minutes.
Each movement is controlled by a smart PLC system, ensuring smooth, safe operation with minimal human intervention.
By stacking and sliding vehicles across multiple levels, PPS dramatically increases parking capacity in limited land areas — perfect for cities, malls, hotels, and mixed-use buildings.
Automated controls and real-time system management reduce the time spent searching for parking or retrieving vehicles. Most retrievals occur within 2–3 minutes.
Cars are parked in an enclosed structure with limited public access, monitored by CCTV and sensor systems, reducing the risks of theft, vandalism, or parking mishaps.
No need for round-the-clock valets. The semi-automated system relies on button/IC card operation and minimal energy consumption to function efficiently.
Drivers can operate the system with one tap. No steep learning curve — just intuitive, guided interaction.
· Urban Residential Complexes
· Commercial & Office Buildings
· Hotels and Shopping Centers
· Public Parking Facilities
· Government or Transit Hubs
Whether you’re optimizing a small inner-city plot or adding scalable parking to a multi-tower development, the PPS system is highly adaptable and customizable by project.
| Model | PPS-2 to PPS-6 (Lift-Sliding Puzzle Parking System) |
|---|---|
| Lifting Capacity | 2,000 kg – 2,500 kg (Up to 2,500 kg on Ground Floor) |
| Vehicle Height | 1,550 mm – 2,050 mm |
| Vehicle Length | ≤ 5,300 mm |
| Vehicle Width | ≤ 1,950 mm |
| Operation Mode | IC Card or Button |
| Control System | PLC (Siemens or Equivalent) |
| Motor Power | Lifting: 2.2–3.7 kW / Sliding: 0.2–0.4 kW |
| Voltage | Customizable (Standard: 3-phase, 50Hz) |
| Rising Speed | 4–6 m/min |
| Sliding Speed | 6–8 m/min |
| Noise Level | Low noise design for residential compatibility |
| Finish Options | Galvanized Wave Plates / Powder Coating / Optional Colors & Numbering Plates |
| Safety Systems | Anti-fall locks, photoelectric sensors, emergency stop, tire stoppers, etc. |
The global automated parking systems market is expected to surpass $5 billion by 2028, driven by:
· Rapid urbanization and vertical real estate development
· Environmental push for low-emission infrastructure
· Growing demand for smart city integrations
· Increasing construction costs, making space-saving tech more valuable than ever
In regions like Southeast Asia, the Middle East, and European cities, puzzle systems like SolidParking’s PPS are gaining traction due to their modular, cost-effective, and low-footprint design.
With the PPS Series, SolidParking delivers a powerful combination of engineering reliability, user convenience, and architectural compatibility. Whether you’re a property developer, building planner, or municipal decision-maker, this system meets the demands of today’s cities — and anticipates tomorrow’s.
👉 Want to see how it works in action?
The PPS system is semi-automated—it relies on precise lift and slide operations without full automation. This makes it more cost-effective, easier to maintain, and ideal for mid-size buildings without the complexity of robotic systems.
Yes. The PPS series includes multiple safety mechanisms such as:
· Anti-fall locking devices
· Tire stoppers
· Photoelectric sensors
· Emergency stop buttons
These ensure the car remains stable and protected throughout the parking process.
Typically, vehicle retrieval takes 2 to 3 minutes, depending on system size and car position. The operation is smooth and efficient, making it ideal for high-turnover areas like shopping centers or apartment buildings.
Absolutely. SolidParking specializes in tailor-made puzzle parking solutions, adjusting parameters like height, platform length, weight capacity, finish, and control methods to match your architectural and regulatory requirements.
